Braided Wire Rope Belt

Get a Price/Quote

Product Details:

Click to view more
Share Your Product:

Request To Call Back Send Inquiry

Product Description

Lift Arts make Braided Belt Slings of wire ropes are ideal for the lifting of the loads which are abrasive, hot or may cut the other types of slings like polyester webbing belt slings. Woven from tested quality high tensile wire ropes these slings are very flexible, have wide surface to load contact. These can be made in various length and width and safe working load capacity with both soft eye and hard eye design. These are ideal for lifting of coils, hot steel loads etc. These slings are made from 4 mm wire rope dia to 16 mm wire rope dia and numbers of wires vary from 6 to 14 depending upon the specific requirements of width and capacity. Generally made of 6x19 or 6x 36 steel core construction wire ropes.

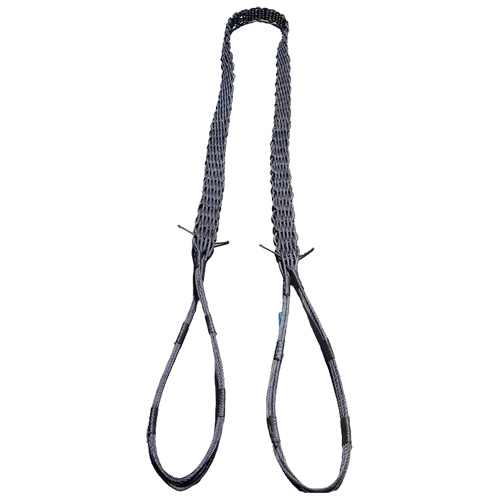

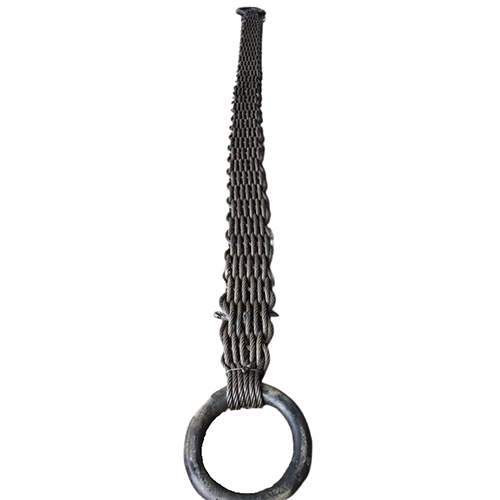

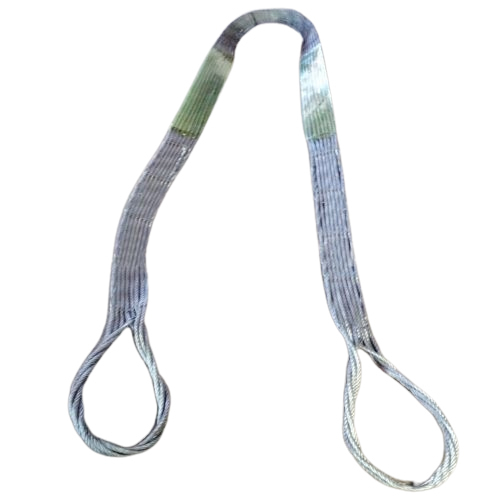

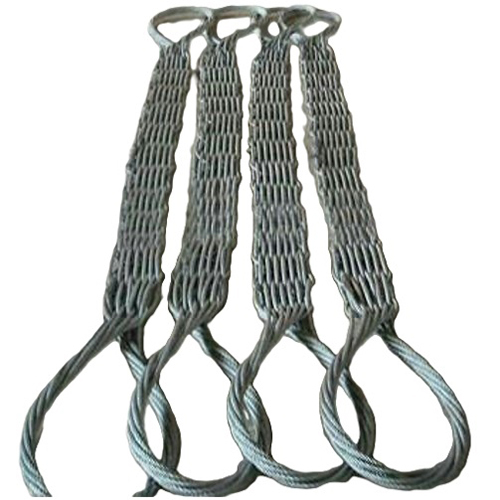

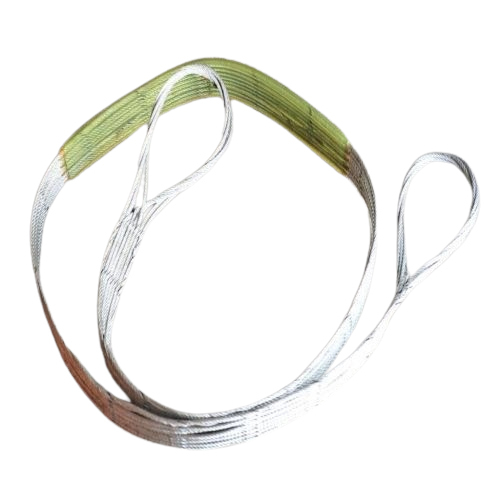

Wire rope braided belts are available in two types, with soft eyes at both ends or with round or oblong rings.

We can manufacture wire rope braided belt sling in different capacities, length & width as per clients specific needs.

Part No	SWL	Oblong Link	Approx Width	Approx Thickness	No of Braid X Wire Rope Dia	Const. of Wire Rope
Part No	Kg	Rod Dia x IL x IW	mm	mm	No of Braid X Wire Rope Dia	Const. of Wire Rope
BWS-126-O-3	3000	16 x 135 x 70 mm	100	15	12 x 6 mm	6 x 19 IWRC
BWS-128-O-5	5000	22 x 160 x 90 mm	110	20	12 x 8 mm	6 x 19 IWRC
BWS-1210-O-10	10000	32 x 200 x 110 mm	150	30	12 x 10 mm	6 x 19 IWRC
BWS-1212-O-15	15000	45 x 275 x 150 mm	190	35	12 x 12 mm	6 x 36 IWRC
BWS-1214-O-20	20000	50 x 300 x 180 mm	225	40	12 x 14 mm	6 x 36 IWRC
BWS-1216-O-32	32000	56 x 340 x 200 mm	250	45	12 x 16 mm	6 x 36 IWRC
BWS-1219-O-40	40000	63 X 400 X 250 mm	300	55	12 X 19 mm	6 x 36 IWRC
