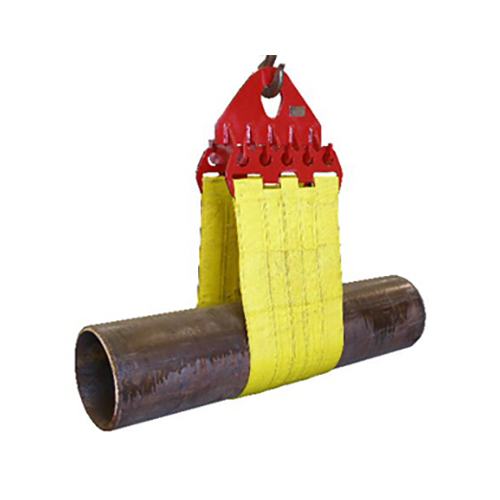

The Lowering Belt or Pipe Line Lifter is a highly durable industrial-grade tool designed for efficient handling and maneuvering of heavy pipelines in industrial operations. Featuring extreme cut-resistant properties, this product ensures safety and longevity even under the most demanding conditions. Manufactured with precision and finished in a vibrant yellow color, it provides excellent visibility in work environments. It is brand new and specifically engineered to withstand rigorous usage in industrial applications. Backed by a 1-year warranty, it combines reliability with performance, making it a trusted choice for managing lifting tasks in pipeline projects.
FERRETERRO pipeline lifter lowering belts are ideal device for laying of pipe lines whenever high load carrying capacity is required with great supporting area. They are made of polyester lifting mats with two sewn-in eye traverses each and a corresponding traverse with hook
- Heavy duty PES webbing for durability & strength
- Alloy steel end irons for greater strength with less weight
- Web coated with heavy duty PU coating
- Blue vinyl tag with clear protective cover to protect data
- End irons painted/Epoxy coated.
- Custom belts available for pipe diameter not listed.
- Belts used around the world, in all types of climates, in sizes up to 60 diameter pipe.
- Lowering-in belt and head iron sold separately.
PART # | Maximum Pipe Diameter | Belt Width | Belt Length | Belt Weight | Working Capacity |
| Inch | MM | Inch | Ft-Inch | Meter | Kg | Kg |
FPL-0512 | 12 | 305 | 12 | 4 9 | 1.45 | 12.7 | 21700 |
FPL-0518 | 18 | 457 | 18 | 7 0 | 2.13 | 20.5 | 33100 |
FPL-0520 | 20 | 508 | 18 | 7 6 | 2.29 | 22.7 | 33100 |
FPL-0524 | 24 | 610 | 24 | 8 6 | 2.59 | 29.5 | 44000 |
FPL-0530 | 30 | 762 | 30 | 10 0 | 3.05 | 40.9 | 55300 |
FPL-0536 | 36 | 914 | 36 | 11 6 | 3.51 | 54.5 | 66200 |
FPL-0542 | 42 | 1067 | 36 | 13 6 | 4.11 | 61.4 | 66200 |
FPL-0548 | 48 | 1219 | 36 | 15 0 | 4.57 | 70.5 | 66200 |
FPL-0552 | 42 | 1067 | 42 | 13 6 | 4.11 | 68.2 | 77500 |
FPL-0552A | 48 | 1219 | 42 | 15 0 | 4.57 | 77.3 | 77500 |
FPL-0554 | 48 | 1219 | 48 | 15 0 | 4.57 | 86.4 | 88400 |
FPL-0556 | 56 | 1422 | 48 | 17 0 | 5.18 | 93.2 | 88400 |
FPL-0556A | 56 | 1422 | 56 | 17 0 | 5.18 | 104.5 | 103400 |
FPL-0560 | 60 | 1524 | 56 | 18 0 | 5.49 | 118.2 | 103400 |
FAQs of Lowering Belt Or Pipe Line Lifter:
Q: What is the primary use of the Lowering Belt or Pipe Line Lifter?
A: The Lowering Belt or Pipe Line Lifter is used in industrial operations for lifting and maneuvering heavy pipelines efficiently and safely.
Q: What material properties does the product offer?
A: The product features extreme cut-resistant properties, ensuring safety and durability during use.
Q: Is the product suitable for demanding industrial environments?
A: Yes, the Lowering Belt or Pipe Line Lifter is specially designed to endure rigorous industrial usage.
Q: What is the warranty period for this product?
A: The product comes with a 1-year warranty for additional assurance of quality.
Q: Does the product have specific visibility features?
A: Yes, its bright yellow color enhances visibility in industrial work environments.
