Pipeline Roller Cradle

Product Description

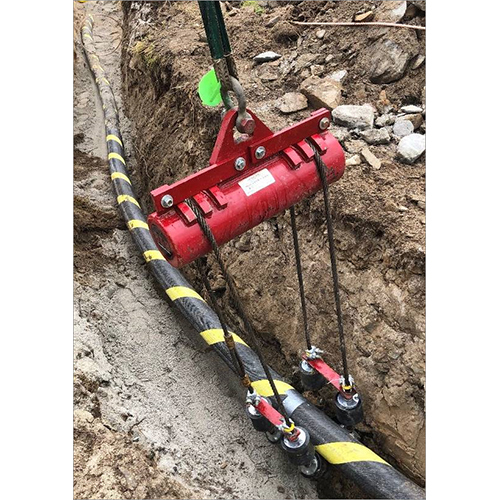

Roller cradles are used in pipeline lay down operation. The rollers evenly distribute the pressure on the pipe, avoiding the risk of cracking the welds and preserving the coating.

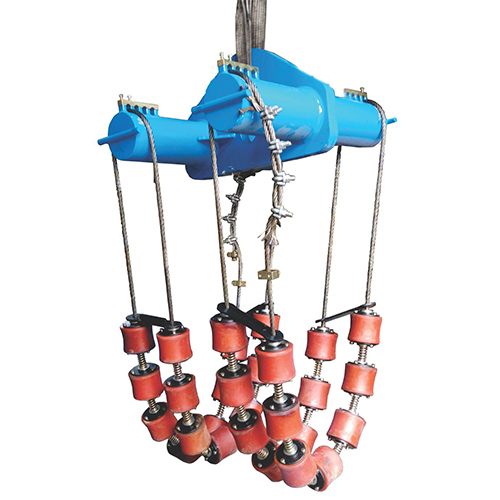

Roller Cradles are designed to support pipes and pipeline lifting machineries. Each cradle consists of wide range pipe sizes. The unique design permits quick disassembly for transit and storage. Multiple urethane rollers configured to support the pipe evenly and to prevent any damages on the coating.

The use of polyurethane rollers also eliminates the risk of damaging the polyethylene or FBE pipe coating that can occur using regular steel wheel cradles. In addition, high standard ropes are provided with the cradle in order to ensure long lasting life and safe operation at site. The Pipeline Equipments roller cradles can be easily disassembled for fast site repair and maintenance and optimized storage and transport. The Pipeline Equipment roller cradles comply with all applicable standards

Ferreterro Pipeline roller Cradle/ Rolli Cradle

SPECIFICATION PIPELINE ROLLER CRADLE

SIZE NUMBER OF ROLLER PER ROLLER ASSEMBLY (4 ROLLER ASSEMBLY) MAXIMUM RECOMMENDED WORKING LOAD IN MM LB KG

• 6 -12 152-305 5 16,923 7,676
• 12-24 305-610 6 28.662 13,000
• 24-36 610-914 7 56,500 25,328
• 36-48 914-1219 8 69,390 31,475
• 48-60 1219-1524 9 105,380 47,800

• Ferreterro cradle is the ideal cradle for all line travel operations.
• Pipe damage caused by steel wheel cradles is eliminated.
• Even Load distribution
• Polyurethane rollers ride easily over weld seams and do not hang up.
• Easily disassembled for storage and transit.
• Ample capacity ensures safe handling of heavy wall pipe.
• Suitable also for use as a lowering-in or lift out cradle.
• Available in five ranges to accommodate pipe sizes 6(168mm) through 60 (1524mm). Safety Factor 5:1
• Replacement Parts Available

SIZE

LENGTH

WIDTH

HEIGHT

IN

MM

IN

MM

IN

MM

IN

MM

6 -12

152-305

42

1067

22

559

30

760

12-24

305-610

42

1067

36

914

36

914

24-36

610-914

56

1422

60

1524

36

914

36-48

914-1219

56

1422

72

1829

42

1067

48-60

1219-1524

56

1422

84

2134

48

1219
