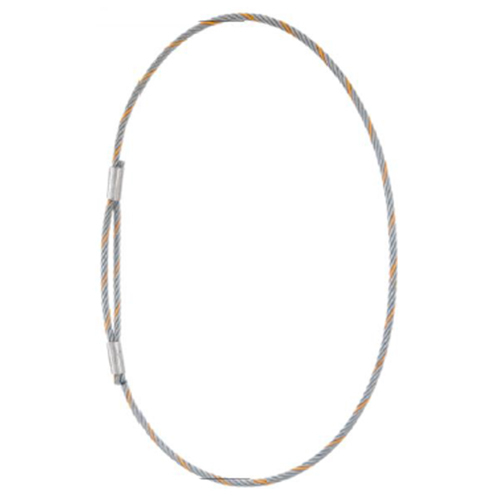

Endless Spliced Wire Rope Sling

Get a Price/Quote

Product Details:

Grade 6x19, 6x37, 8x19, 8x36 IWRC
Wire Gauge 8 mm to 40 mm
Product Type Endless Spliced Wire Rope Sling
Material Galvanized or Ungalvanized Steel
Alloy Carbon Steel/ Alloy Steel
Strength High Tensile Strength
Application Lifting, Material Handling, Construction, Marine and Industrial Use
Click to view more
Share Your Product:

Request To Call Back Send Inquiry

Endless Spliced Wire Rope Sling Product Specifications

Length Customized as per requirement
Wire Gauge 8 mm to 40 mm
Alloy Carbon Steel/ Alloy Steel
Wire Diameter 8 mm to 40 mm
Color Natural/Silver
Application Lifting, Material Handling, Construction, Marine and Industrial Use
Material Galvanized or Ungalvanized Steel
Grade 6x19, 6x37, 8x19, 8x36 IWRC
Product Type Endless Spliced Wire Rope Sling
Strength High Tensile Strength

Safety Factor 5:1 or higher
Construction Type Endless Spliced
End Termination Spliced Endless Loop
Finish Bright, Galvanized or Ungalvanized
Flexibility High Flexibility
Temperature Resistance -40°C to +200°C
Corrosion Resistance Available with Galvanized Coating
Breaking Load As per IS 2762/BS 6668/EN 13414 standards
Core Type Fibre Core (FC) or Steel Core (IWRC)

Product Description

Splicing the ends of a piece of wire rope makes an endless sling. It is simple to handle and can be used in several different ways to lift loads. The endless sling is most commonly used as a choker hitch. When the endless sling is used as a choker, user passes it around the object forming a loop on top of the object. The other end is passed through this loop, pulled tight and attached to the cargo hook. To balance the load, user spread apart the two parts of the sling on the bottom of the object.

Double part endless slings are available in both ferule spliced and hand spliced.

MAX. SAFE WORKING LOAD IN KG DOUBLE PART WIRE ROPE SLINGS
MIN. ROPE SIZE (MM)	VERTICAL LIFT (KG)	BASKET LIFT (KG)	CHOKER LIFT (KG)
3	140	280	100
4	260	520	200
5	400	800	300
6	500	1000	380
8	1100	2200	820
9	1340	2680	1000
10	1600	3200	1200
11	2000	4000	1500
12	2400	4800	1800
13	2800	5600	2100
14	3500	7000	2600
16	4000	8000	3000
18	5000	10000	3750
19	6000	12000	4500
20	6600	13200	4950
22	8000	16000	6000
24	9200	18400	6900
25	10000	20000	7500
29	13000	26000	9750
32	16000	32000	12000
35	18400	36800	13800
36	20800	41600	15600
38	24000	48000	18000
40	25400	50800	19050
44	33400	66800	25050
48	40000	80000	30000
52	46000	92000	34500

Superior Flexibility and Strength

The endless spliced construction provides outstanding flexibility and allows for easy adjustment of load contact points, reducing stress concentration. High-tensile carbon or alloy steel wires ensure both strength and durability, making these slings ideal for demanding tasks in various industries such as construction, marine, and heavy material handling.

Built for Safety and Standards Compliance

Each sling is manufactured according to IS 2762, BS 6668, and EN 13414 quality standards, ensuring reliability in rigorous applications. With a minimum safety factor of 5:1 and temperature resistance ranging from -40C to +200C, these wire rope slings guarantee secure performance in a range of operational conditions.

Customization to Suit Every Need

Endless Spliced Wire Rope Slings can be tailored in length and diameter to meet specific lifting requirements. Various wire gauges (8 mm-40 mm), finishes (bright, galvanized, or ungalvanized), and core types (fibre or steel core) are available, allowing for optimal selection based on usage scenario, load type, and environmental exposure.

FAQ's of Endless Spliced Wire Rope Sling:

Q: How are Endless Spliced Wire Rope Slings constructed?

A: These slings are made using a continuous wire rope loop that is mechanically or hand spliced, eliminating end fittings and providing uniform load distribution. The splicing process ensures high strength and reduced stress points for improved durability.

Q: What are the main advantages of using an endless spliced wire rope sling?

A: Endless spliced wire rope slings offer high flexibility, uniform wear, and extended service life since their load contact points can be rotated. The absence of hardware at the ends reduces potential weak points and makes them suitable for various rigging configurations.

Q: Where can these wire rope slings be used?

A: These slings are suited for lifting and material handling tasks in industries such as construction, marine, shipyards, manufacturing, and other heavy-duty environments. Their robust build and corrosion-resistant options enable use in both indoor and outdoor applications.

Q: What safety standards do these wire rope slings adhere to?

A: They are engineered to comply with IS 2762, BS 6668, and EN 13414 international standards, which specify strict guidelines for breaking load, construction, and performance. They also maintain a safety factor of 5:1 or higher for secure operation.

Q: What wire diameters and grades are available for these slings?

A: Endless spliced wire rope slings can be produced in wire diameters from 8 mm to 40 mm, and are available in grades such as 6x19, 6x37, 8x19, and 8x36 IWRC, providing a variety of strength and flexibility profiles to suit different lifting requirements.

Q: How do I select between fibre core (FC) and steel core (IWRC) options?

A: Fibre core (FC) slings provide greater flexibility and are lighter, making them suitable for applications where bend radius is important. Steel core (IWRC) slings offer higher strength and better resistance to crushing-ideal for heavy-duty and high-load scenarios.

Q: What is the process for customizing length or finish?

A: Manufacturers and suppliers in India provide customization options for length, wire diameter, and finish (bright, galvanized, or ungalvanized). Specifications can be shared during order placement to tailor the sling for specific application needs.

Tell us about your requirement

Price:

Quantity

Select Unit

50
100
200
250
500
1000+

Additional detail

Mobile number

Other Products in 'Endless And Grommet Wire Rope Sling' category

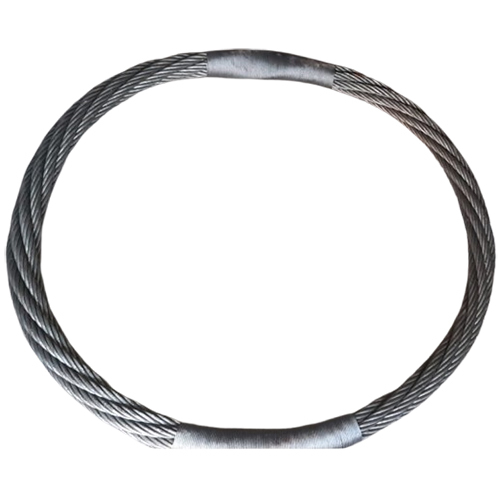

Cable Laid Grommet Wire Rope Sling Color : Natural metallic grey Application : Other, Heavy lifting, marine, offshore, construction, rigging Wire Diameter : From 6 mm up to 50 mm or as specified Alloy : Steel alloy (typically carbon steel or as specified) Length : Standard and custom lengths available Wire Gauge : Customizable as per requirement Grade : Galvanized or Ungalvanized, 1770/1960 N/mm Material : Other, Steel wire, carbon steel core Strength : High tensile strength, conforms to IS/BS/DIN/ISO standards Product Type : Cable Laid Grommet Wire Rope Sling
