Product Description

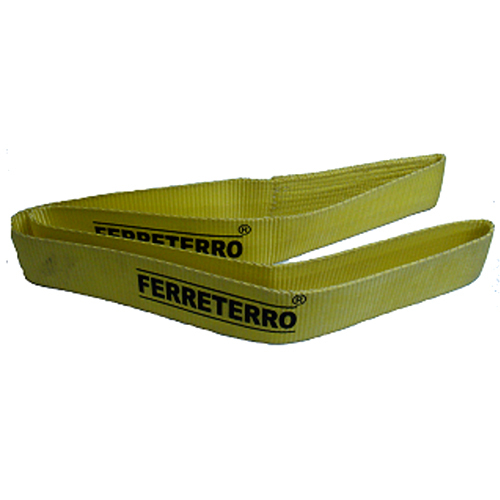

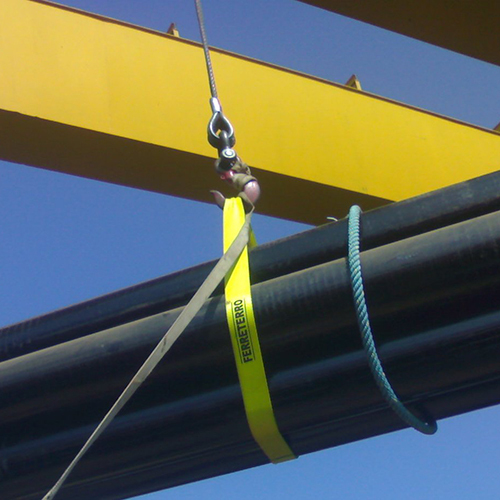

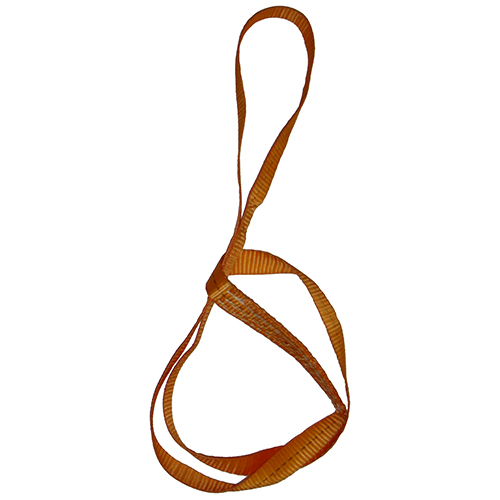

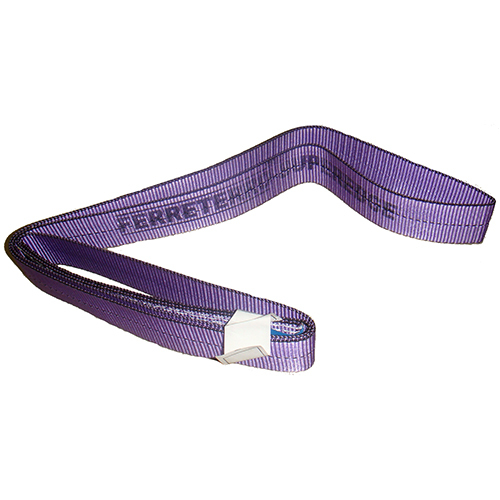

We supply one-way slings for different usage and capacity range. Common application for these one-way slings are lifting, positioning and transportation of various items mainly pipes etc for export cargo. These slings are inserted in the pipe bundles/Loads prior to dispatch at the designated load balance points so that no additional slinging is required while loading in the cargo, thus save the time and efforts. After the load reaches its destination, it is unloaded by these one-way slings and slings must not & should not be used again instead they should be disposed of. These one-way slings can be designed for capacity range few kilos to 5 tons.

Slings are also be designed for 6-7 lifting usage for Pre-Slung techniques. Higher capacity Pre-Slung slings are also available as per specific requirements. All these slings are engineered and tested at the point of manufacture and labelled accordingly. These slings are endless types but can be made in eye-to-eye type also.

FEATURES

  • Designed to single use- One way and Pre-Slung techniques
  • Pre-slung as per EN-1492-1 and One Way slings as per ASME B30.9 & DIN 60005
  • Low cost with simple design
  • Stronger and more compact then synthetic rope slings or other alternates.
  • Easy to use and can be pre-inserted in the bundles of pipe.
  • Save the time as well as cost on-site slinging & re-slinging loads.

Pre-Slung lifting slings are used for the transportation of goods which have been slung in advance (pre-slung), it means that endless web slings remain slung permanently around the load during whole transportation. One way slings should not be confused with Pre-Slung Slings which are used for a longer transportation period and can be used on same transportation route more than one. These have safety Factor 7:1 as per EN-1492-1

ONE WAY SLINGS CAPACITY IN KGS

WLL in kg with one Endless Sling

WLL in kg with two Endless Slings

Straight lift

Choke Hitch

Straight Inclination        7°-45°          45°- 60°

Choke Inclination              7°-45°             45°- 60°

ITEM CODE

WIDTH

COLOUR  CODE

MODE FACTOR

M=1.0

M=0.8

M=1.4

M=1.0

M=1.12

M=0.8

1W-1

25

VIOLET

1000

800

1400

1000

1120

800

1W-2

50

GREEN

2000

1600

2800

2000

2240

1600

1W-3

75

YELLOW

3000

2400

4200

3000

3360

2400

1W-4

100

GREY

4000

3200

5600

4000

4480

3200

1W-5

125

RED

5000

4000

7000

5000

5600

4000

1W-6

150

BROWN

6000

4800

8400

6000

6720

4800

1W-8

200

BLUE

8000

6400

11200

8000

8960

6400

1W-10

250

ORANGE

10000

8000

14000

10000

11200

8000
