Pipeline Lifter

Get a Price/Quote

Product Details:

Size Customizable as per pipeline diameter
Automatic Grade Manual
Product Type Pipeline Lifter
Surface Treatment Paint Coated or Galvanized
Rope Diameter For use with 20 mm to 40 mm wire ropes
Usage & Applications Lifting and positioning of pipelines during installation and maintenance
Capacity Up to 50 tons
Click to view more
Share Your Product:

Request To Call Back Send Inquiry

Pipeline Lifter Product Specifications

Weight Approx. 350-1200 kg depending on model
Surface Treatment Paint Coated or Galvanized
Material High-Grade Steel
Rope Diameter For use with 20 mm to 40 mm wire ropes
Shape Curved lifting arms to fit pipe contour
Capacity Up to 50 tons
Product Type Pipeline Lifter
Size Customizable as per pipeline diameter
Automatic Grade Manual
Usage & Applications Lifting and positioning of pipelines during installation and maintenance

Product Description

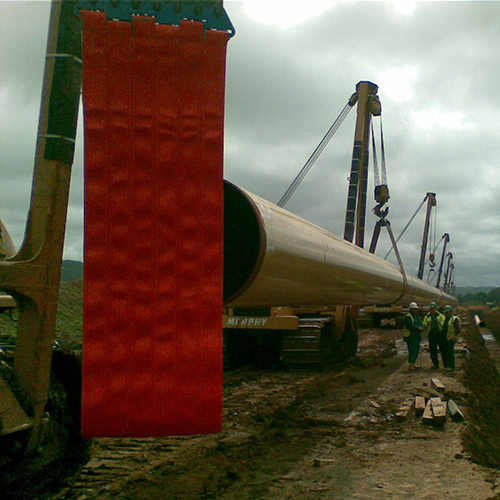

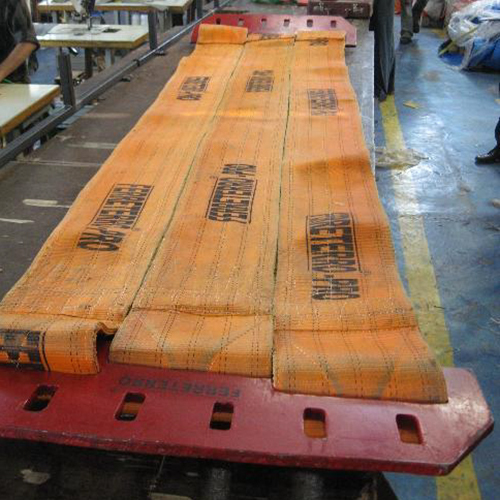

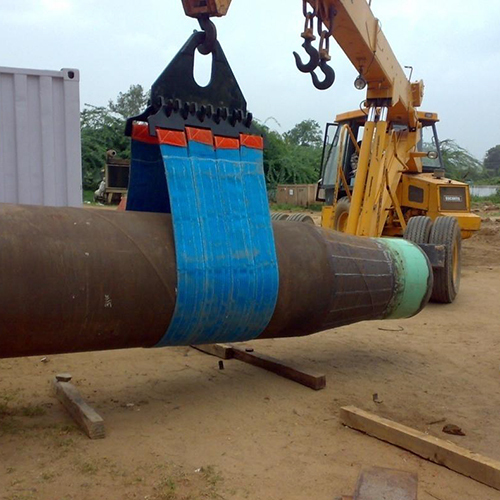

FERRETERRO pipeline lifter lowering belts are ideal device for laying of pipe lines whenever high load carrying capacity is required with great supporting area. They are made of polyester lifting mats with two sewn-in eye traverses each and a corresponding traverse with hook

Heavy duty PES webbing for durability & strength

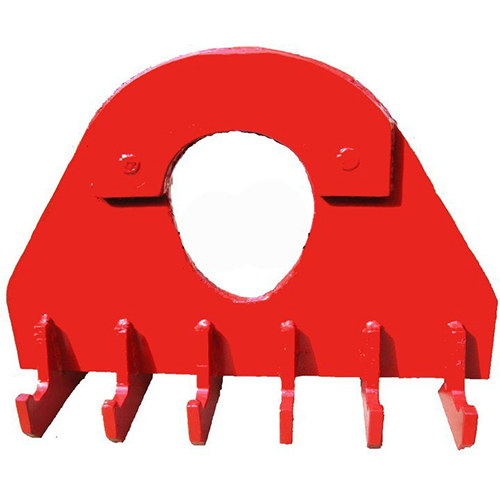

Alloy steel end irons for greater strength with less weight
Web coated with heavy duty PU coating
Blue vinyl tag with clear protective cover to protect data
End irons painted/Epoxy coated.
Custom belts available for pipe diameter not listed.
Belts used around the world, in all types of climates, in sizes up to 60 diameter pipe.
Lowering-in belt and head iron sold separately.

PART #	Maximum Pipe Diameter		Belt Width	Belt Length		Belt Weight	Working Capacity
	Inch	MM	Inch	Ft-Inch	Meter	Kg	Kg
FPL-0512	12	305	12	4 9	1.45	12.7	21700
FPL-0518	18	457	18	7 0	2.13	20.5	33100
FPL-0520	20	508	18	7 6	2.29	22.7	33100
FPL-0524	24	610	24	8 6	2.59	29.5	44000
FPL-0530	30	762	30	10 0	3.05	40.9	55300
FPL-0536	36	914	36	11 6	3.51	54.5	66200
FPL-0542	42	1067	36	13 6	4.11	61.4	66200
FPL-0548	48	1219	36	15 0	4.57	70.5	66200
FPL-0552	42	1067	42	13 6	4.11	68.2	77500
FPL-0552A	48	1219	42	15 0	4.57	77.3	77500
FPL-0554	48	1219	48	15 0	4.57	86.4	88400
FPL-0556	56	1422	48	17 0	5.18	93.2	88400
FPL-0556A	56	1422	56	17 0	5.18	104.5	103400
FPL-0560	60	1524	56	18 0	5.49	118.2	103400

Engineered for Safety and Performance

Our Pipeline Lifter incorporates an integrated locking mechanism, offering operators added security during heavy lifts in challenging outdoor conditions. The sturdy construction from high-grade steel and compatibility with standard crane hooks ensures both resilience and ease of use.

Customizable to Suit Your Needs

Designed for flexibility, the Pipeline Lifter can be manufactured to match various pipe diameters, with customizable size and color options. It accommodates wire ropes from 20 mm to 40 mm and is suitable for a range of pipeline installation and maintenance tasks.

Long-lasting Protection and Durability

A robust paint or galvanized finish shields the lifter from corrosion and wear, ensuring a long service life even in harsh construction environments. Its intelligent design, including shaped arms, guarantees precise and secure handling of pipeline sections.

FAQs of Pipeline Lifter:

Q: How does the integrated locking mechanism enhance operator safety during use?

A: The integrated locking mechanism firmly secures the pipeline within the lifter, minimizing the risk of slippage or accidental disengagement when handling heavy loads, thereby enhancing operator safety and reducing on-site incidents.

Q: What is the process for selecting the right size Pipeline Lifter for a project?

A: To select the appropriate lifter, assess the diameter and weight of the pipelines to be handled. Our models are customizable to fit different pipe diameters and weights, and our team can guide you in choosing a solution compatible with your lifting equipment and site requirements.

Q: When should a mechanical lifter like this be used instead of other methods?

A: Mechanical lifters are ideal when safely lifting and precisely positioning heavy or large-diameter pipelines, especially on construction or installation sites where robust, reliable support and crane compatibility are essential.

Q: Where can the Pipeline Lifter be effectively utilized?

A: This lifter is designed for demanding outdoor environments, such as construction zones and pipeline installation sites, where it assists in securely moving and positioning pipes during installation and maintenance operations.

Q: What benefits does using a high-grade steel construction provide?

A: High-grade steel delivers superior strength, durability, and impact resistance, enabling the lifter to reliably handle heavy loads, endure frequent use, and maintain safety standards over its operational life.

Q: How can I order a Pipeline Lifter with specific customization requirements?

A: You may request customizations such as size, color, and OEM features by sharing your pipeline specifications and site requirements with the manufacturer or supplier. Our team collaborates closely with clients to deliver tailored solutions.
