Two Leg Wire Rope Slings

Get a Price/Quote

Product Details:

Wire Gauge 6 mm to 40 mm
Grade EN 12385, IS 2266, General Purpose
Product Type Two Leg Wire Rope Sling
Material Galvanized Steel Wire Rope
Alloy Steel
Strength High Tensile
Application Lifting, Rigging, Material Handling
Click to view more
Share Your Product:

Request To Call Back Send Inquiry

Two Leg Wire Rope Slings Product Specifications

Product Type Two Leg Wire Rope Sling
Strength High Tensile
Color Natural Silver
Wire Diameter 6 mm to 40 mm
Alloy Steel
Grade EN 12385, IS 2266, General Purpose
Length Custom up to 12 meters
Application Lifting, Rigging, Material Handling
Wire Gauge 6 mm to 40 mm
Material Galvanized Steel Wire Rope

Product Description

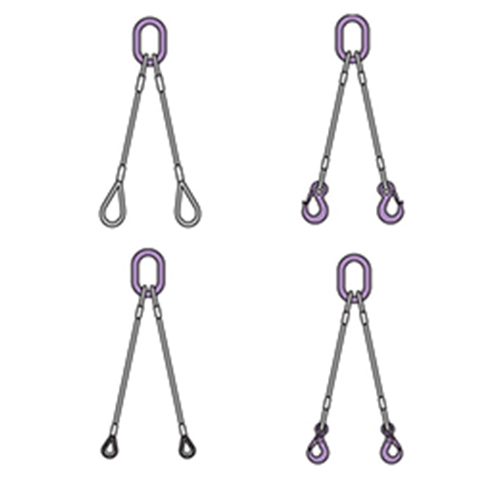

We manufacture two-legged wire rope slings made of tested quality wire ropes as per IS Specifications with different end fittings attachments for various lifting purpose. We are capable to make these slings as per customers specific requirements of lifting. All slings are as per IS: 2762-1982 and can be supplied in various working load limits (WLL). Splicing of slings are as per IS: 5245 (Part-II). Slings are available with oblong ring and round ring at top.

MAX. SAFE WORKING LOAD IN KG TWO LEGGED WIRE ROPE SLINGS
Min. Rope Size (mm) Permissible WLL of Single Leg		Permissible Working Load Limit of Two-Legged Wire Slings
Min. Rope Size (mm) Permissible WLL of Single Leg		At 0	At 30	At 60	At 90	At 120
Load Reduction Factor		1.0	0.966	0.866	0.707	0.500
3	70	140	135	120	100	70
4	130	260	250	225	185	130
5	200	400	385	350	280	200
6	250	500	480	450	350	250
8	550	1100	1050	950	775	550
9	670	1340	1300	1150	950	670
10	800	1600	1550	1400	1100	800
11	1000	2000	1900	1750	1400	1000
12	1200	2400	2300	2100	1700	1200
13	1400	2800	2700	2400	2000	1400
14	1750	3500	3400	3000	2500	1750
16	2000	4000	3850	3450	2800	2000
18	2500	5000	4800	4300	3500	2500
19	3000	6000	5800	5200	4200	3000
20	3300	6600	6400	5700	4600	3300
22	4000	8000	7700	6900	5600	4000
24	4600	9200	8900	7900	6500	4600
25	5000	10000	9600	8600	7000	5000
29	6500	13000	12500	11200	9200	6500
32	8000	16000	15400	13800	11300	8000
35	9200	18400	17800	15900	13000	9200
36	10400	20800	20100	17800	14700	10400
38	12000	24000	23200	20800	16900	12000
40	12700	25400	24500	22000	17900	12700
44	16700	33400	32200	28900	23500	16700
48	20000	40000	38600	34600	28200	20000
52	23000	46000	44400	39800	32400	23000

High Strength for Heavy-Duty Applications

These two leg wire rope slings are constructed from high tensile galvanized steel with wire diameters ranging from 6 mm to 40 mm. Designed for general lifting, rigging, and material handling operations, they are well-suited for use in demanding industrial environments, ensuring reliable performance and enhanced operational safety.

Versatile End Fittings for Secure Connections

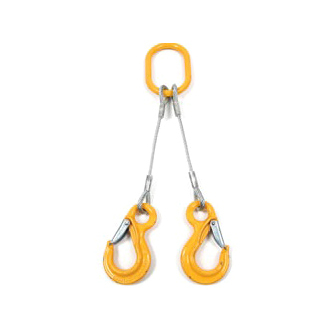

Each sling is fitted with your choice of eye hooks, shackles, or thimbles, enabling secure and adaptable connections to a variety of lifting apparatus. This versatility provides enhanced flexibility in different operational settings, meeting diverse user requirements.

Enhanced Durability and Corrosion Resistance

Galvanized finish delivers superior corrosion resistance, ideal for outdoor or marine applications, while the option for ungalvanized slings meets specific indoor or controlled environment needs. Every sling is proof-load tested in accordance with industry standards for guaranteed safety and reliability.

FAQ's of Two Leg Wire Rope Slings:

Q: How should the Two Leg Wire Rope Sling be used for optimal safety during lifting operations?

A: To ensure safety, always check the Working Load Limit (WLL) of up to 30 tonnes before use and confirm the sling is compatible with the load and lifting configuration. Inspect the slings regularly, maintain the proper angle, and use the fitted end components-eye hook, shackle, or thimble-correctly according to your lifting apparatus.

Q: What materials are used in these wire rope slings, and why are they chosen?

A: These slings are manufactured from galvanized or ungalvanized high tensile steel wire rope, offering strong resistance to wear and heavy loads. Galvanization provides enhanced corrosion resistance, making the sling suitable for challenging or outdoor conditions.

Q: When should these wire rope slings be inspected or replaced?

A: Inspect the sling before every use for visible signs of damage, deformities, kinks, or corrosion. Replace the sling if you notice any visible wear, broken wires, or when it fails to meet standards after periodic assessments. Regular inspections help ensure continued safety and performance.

Q: Where can Two Leg Wire Rope Slings be utilized most effectively?

A: These slings are ideal for shipping yards, construction sites, manufacturing facilities, and general-purpose material handling environments, both indoors and outdoors. Their high tensile strength and customizable lengths make them versatile across various industries.

Q: What is the process for proof load testing these slings?

A: Each wire rope sling undergoes a proof load test, conducted as per industry standards such as EN 12385 and IS 2266. The sling is loaded to a specific force higher than its rated capacity to verify its integrity and ensure it can safely withstand expected working loads.

Q: What are the main benefits of using galvanized wire rope slings with a 5:1 safety factor?

A: Galvanized slings offer outstanding corrosion resistance, making them suitable for harsh environments. The 5:1 safety factor provides an added margin of safety during lifting, ensuring reliability and reducing the risk of failure under load.

Q: How can I determine the correct wire diameter and length for my application?

A: Select the wire diameter and length based on the required working load, lifting environment, and application specifics. Consult load charts or a qualified expert to ensure the sling matches your operational needs, with available options from 6 mm to 40 mm diameter and up to 12 meters in length.
