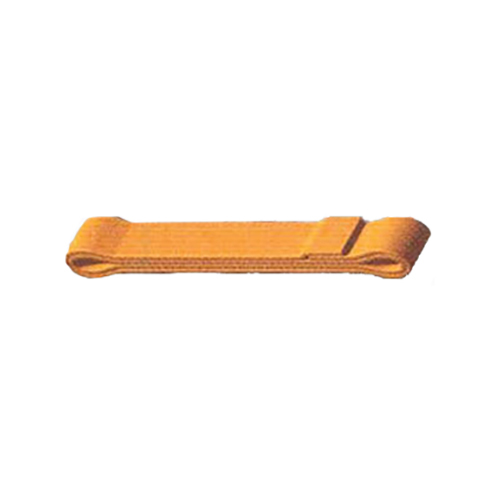

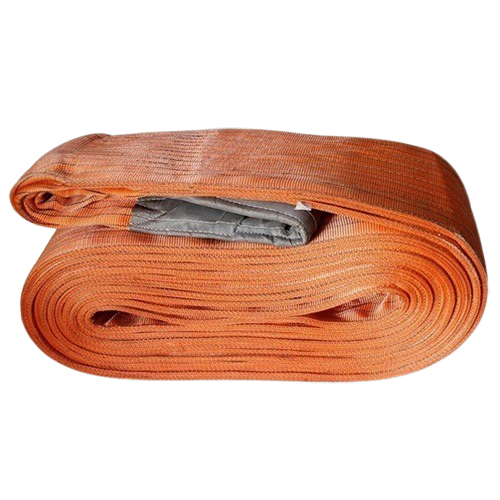

Quadruplex Sling

Get a Price/Quote

Product Details:

Equipment Type Lifting Sling
Handle Type Loop/eye end
Lifting Speed Manual Operation
Belt Type Quadruple Layer Flat Belt
Features Cut resistant, chemical resistant
Condition New
Lifting Capacity Up to 32 Tons
Click to view more
Share Your Product:

Request To Call Back Send Inquiry

Quadruplex Sling Product Specifications

Belt Type Quadruple Layer Flat Belt
Lifting Speed Manual Operation
Features Cut resistant, chemical resistant
Length of Belt Available as per requirement
Attributes High strength, flexible, low stretch
Feature Abrasion resistant, lightweight, anti-corrosive
Condition New
Lifting Capacity Up to 32 Tons
Max. Lifting Height Up to 10 Meters
Power Source Manual
Max. Lifting Load 32 Tons
Handle Type Loop/eye end
Equipment Type Lifting Sling

Product Description

FEATURES

100% High Tenacity Polyester
Made of 4 Ply Webbing
Flat & wide Load bearing surface
According to EN-1492-1:2000 or ASME B 30.9, IS:15041
Safety Factor 7:1 and 5:1
Low Stretch Factor: Elongation 3-7%
High strength to weight ratio: Weight 80% less than Equivalent Wire or Chain slings
Available up to 300 mm width & 24 Ton Capacity
Colour coded for easy identification
Maximum working temperature 90°C
Anti-abrasion sleeves and Anti- cutting sleeves protection (optional)

			QUADRIPLEX WEBBING SLINGS CAPACITY IN KGS
			WLL in kg with one webbing sling					WLL in kg with two webbing slings
			Straight lift	Choke Hitch	Basket Hitch up to 7° 7° - 45° 45° -60° 60° Up to 7°			Straight Inclination 7°-45° 45°- 60°		Choke Inclination 7°-45° 45°- 60°
ITEM CODE	WIDTH	COLOUR CODE
MODE FACTOR			M=1.0	M=0.8	M=2	M=1.4	M=1.0	M=1.4	M=1.0	M=1.12	M=0.8
LQP-2000	25	VIOLET	2000	1600	4000	2800	2000	2800	2000	2240	1600
LQP-4000	50	GREEN	4000	3200	8000	5600	4000	5600	4000	4480	3200
LQP-6000	75	YELLOW	6000	4800	12000	8400	6000	8400	6000	6720	4800
LQP-8000	100	GREY	8000	6400	16000	11200	8000	11200	8000	8960	6400
LQP-10000	125	RED	10000	8000	20000	14000	10000	14000	10000	11200	8000
LQP-12000	150	BROWN	12000	9600	24000	16800	12000	16800	12000	13440	9600
LQP-16000	200	BLUE	16000	12800	32000	22400	16000	22400	16000	17920	12800
LQP-20000	250	ORANGE	20000	16000	40000	28000	20000	28000	20000	22400	16000
LQP-24000	300	ORANGE	24000	19200	48000	33600	24000	33600	24000	26880	19200

Engineered for Heavy Lifting

Our Quadruplex Sling is meticulously engineered for reliability in challenging environments such as construction, shipping, and manufacturing. Its quadruple-layer flat belt configuration enhances load distribution while ensuring maximum strength, making it ideal for safe lifting of heavy materials. The product's robust polyester construction contributes to its long operational life and resistance to abrasions, cuts, and chemicals.

Flexible Options for Diverse Applications

Available as endless or with eyes, and with flat or twisted eye end fittings, this lifting sling offers customizable options to suit varied lifting requirements. Its size and length can be tailored to your specifications, supporting lifts up to 32 tons and heights up to 10 meters. It meets international safety color codes for easy identification and compliance in operational sites.

FAQ's of Quadruplex Sling:

Q: How should the Quadruplex Sling be used for safe lifting operations?

A: To ensure safe lifting, always inspect the sling before each use for damage or wear. Attach the sling securely to the load using the correct type of end fitting-flat eye or twisted eye-ensuring the load is evenly distributed. Follow recommended safety factors and avoid exceeding the specified lifting capacity of 32 tons.

Q: What are the main benefits of choosing a Quadruplex Sling made from high tenacity polyester?

A: This sling offers superior strength with minimal stretch, is lightweight for easier handling, and is highly resistant to abrasion, cuts, and chemicals. Its flexibility allows for secure lifting of irregularly shaped loads, while its anti-corrosive properties ensure longevity in harsh environments.

Q: When is it appropriate to use a Quadruple Layer Flat Belt Sling?

A: Quadruple layer slings are best used when handling heavy loads, such as during construction, shipping, or manufacturing, where both high lifting capacity and flexibility are necessary. It is ideal when a low-stretch and abrasion-resistant sling is required.

Q: Where can the Quadruplex Sling be deployed?

A: These slings are ideal for use in a wide range of industries, including construction sites, shipping ports, manufacturing plants, and warehouses for material handling operations, offering reliable lifting solutions across India.

Q: What is the process for ordering the Quadruplex Sling with specific length, width, or fittings?

A: You can specify your requirements regarding length, width (up to 300 mm), type (endless or with eyes), and end fittings (flat or twisted eye) at the time of order. The manufacturer, supplier, or trader will customize the sling accordingly and ensure it is packed as per your request.

Q: How does the Quadruplex Sling ensure compliance with safety standards?

A: It is manufactured according to EN 1492-1:2000 and IS 15041:2001 standards, uses international safety color codes, and offers prescribed safety factors (7:1 or 5:1) for added assurance, making it compliant with industry norms for lifting equipment.
