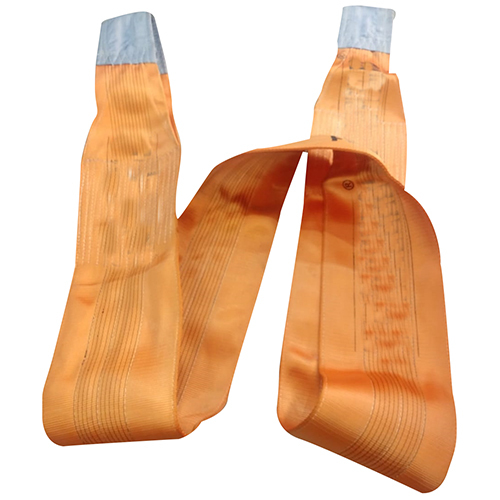

Duplex Webbing Sling

Get a Price/Quote

Product Details:

Control System Manual
Lifting Speed Manual Operation
Rotation Type Not Rotational
Belt Type Duplex Flat Polyester Webbing
Equipment Type Lifting Sling
Features Low Stretch, Cut Resistant, Easy Handling
Condition New
Click to view more
Share Your Product:

Request To Call Back Send Inquiry

Duplex Webbing Sling Product Specifications

Belt Type Duplex Flat Polyester Webbing
Lifting Capacity 1 Ton to 10 Ton
Equipment Type Lifting Sling
Features Low Stretch, Cut Resistant, Easy Handling
Length of Belt 1 m to 12 m
Feature High Strength, Durable, Abrasion Resistant, Lightweight
Max. Lifting Load Up to 10 Ton
Control System Manual
Attributes Duplex, Flat Webbing
Condition New
Lifting Speed Manual Operation
Rotation Type Not Rotational
Max. Lifting Height Up to 12 m

Product Description

FEATURES

100% High Tenacity Polyester
Made of Double thickness of Webbing
Flat & wide Load bearing surface
According to ASME B 30.9
Safety Factor 5:1
Low Stretch Factor: Elongation 3-7%
High strength to weight ratio: Weight 80% less than Equivalent Wire or Chain slings
Available up to 300 mm width & 12 Ton Capacity
Colour coded for easy identification
Maximum working temperature 90° c
Anti-abrasion sleeves and anti cutting sleeves protection (optional)

			DUPLEX WEBBING SLINGS CAPACITY IN KGS
			WLL in kg with one webbing sling					WLL in kg with two webbing slings
			Straight lift	Choke Hitch	Basket Hitch up to 7° 7° - 45° 45° -60° 60° Up to 7°			Straight Inclination 7°-45° 45°- 60°		Choke Inclination 7°-45° 45°- 60°
ITEM CODE	WIDTH	COLOUR CODE
MODE FACTOR			M=1.0	M=0.8	M=2	M=1.4	M=1.0	M=1.4	M=1.0	M=1.12	M=0.8
LDP-1000	25	VIOLET	1000	800	2000	1400	1000	1400	1000	1120	800
LDP-2000	50	GREEN	2000	1600	4000	2800	2000	2800	2000	2240	1600
LDP-3000	75	YELLOW	3000	2400	6000	4200	3000	4200	3000	3360	2400
LDP-4000	100	GREY	4000	3200	8000	5600	4000	5600	4000	4480	3200
LDP-5000	125	RED	5000	4000	10000	7000	5000	7000	5000	5600	4000
LDP-6000	150	BROWN	6000	4800	12000	8400	6000	8400	6000	6720	4800
LDP-8000	200	BLUE	8000	6400	16000	11200	8000	11200	8000	8960	6400
LDP-10000	250	ORANGE	10000	8000	20000	14000	10000	14000	10000	11200	8000
LDP-12000	300	ORANGE	12000	9600	24000	16800	12000	16800	12000	13440	9600

Robust and Durable Construction

Our Duplex Webbing Sling is manufactured using premium 100% high tenacity polyester, ensuring exceptional strength and durability. The woven, soft finish reduces the risk of abrasion and minimizes wear, enabling repeated use in demanding industrial environments. Reinforced loops or eyes provide secure load attachment, making these slings reliable for heavy-duty lifting tasks.

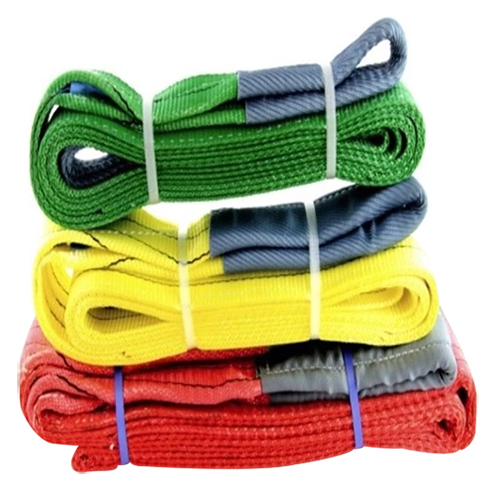

Versatile Application and Color Coding

Engineered to handle loads from 1 ton up to 10 tons and spanning lengths up to 12 meters, this sling is ideal for material handling, rigging, and lifting. The color-coded design simplifies quick identification of lifting capacities, enhancing safety on worksites. Its flexibility and lightweight nature allow for easy handling, increasing operational efficiency.

Compliance and Temperature Resilience

Certified under EN 1492-1:2000, the Duplex Webbing Sling adheres to stringent safety and quality standards. With an operational temperature range from -40C to +100C, it remains robust under diverse environmental conditions. This resilience ensures dependable performance across a variety of industries and settings in India.

FAQ's of Duplex Webbing Sling:

Q: How is the capacity of a Duplex Webbing Sling determined?

A: The lifting capacity of the Duplex Webbing Sling is defined by its color coding, material strength, and width. Each color corresponds to a specific weight range, from 1 ton (violet) up to 10 tons (orange), aligning with EN 1492-1:2000 standards for safe usage.

Q: What is the benefit of using a high tenacity polyester webbing sling?

A: High tenacity polyester offers superior strength, low stretch, and resistance to abrasion and chemicals. This makes the sling highly durable, lightweight, and easy to handle, providing reliable performance for repeated material handling and lifting tasks.

Q: When should I choose a webbing sling over chain or wire rope slings?

A: Webbing slings are ideal when you require lightweight, flexible, and gentle lifting solutions for delicate or finished surfaces. They are particularly suitable for environments where reducing weight and preventing damage to loads is a priority.

Q: Where can Duplex Webbing Slings be used?

A: These slings are widely used in construction sites, warehouses, factories, and shipping yards for material handling, rigging, and lifting applications. Their durability and capacity range make them suitable for diverse industries across India.

Q: How do I correctly use and maintain a Duplex Webbing Sling?

A: Always inspect the sling for wear, cuts, or damage before use. Ensure capacity is matched to the load, attach to loads using the reinforced loops or eyes, and avoid twisting or knotting. Store in a dry, clean area to extend service life and maintain safety.

Q: What is the operational temperature range of this sling?

A: The Duplex Webbing Sling operates efficiently between -40C and +100C, making it suitable for a variety of working conditions, from cold storage environments to high-temperature industrial sites.

Q: What is the advantage of the duplex and flat design of the webbing sling?

A: The duplex (double layer) and flat webbing design offer increased load-bearing capacity and distribute weight evenly across the surface. This enhances safety, minimizes load damage, and improves the overall longevity of the sling.
