Eye Types Multiply Polyester Flat Webbing Sling

Get a Price/Quote

Product Details:

Rotation Type Fixed
Lifting Speed Depends on operator

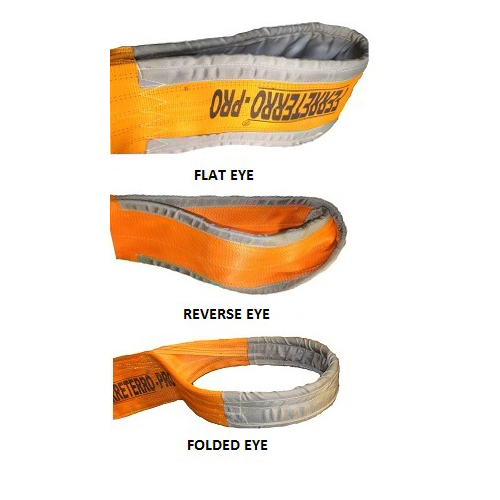

Handle Type Flat loop or reinforced eye
Belt Type Flat Webbing
Features Chemical resistant, Does not damage load surface
Control System Manual
Equipment Type Lifting Sling
Click to view more
Share Your Product:

Request To Call Back Send Inquiry

Eye Types Multiply Polyester Flat Webbing Sling Product Specifications

Length of Belt 1 to 12 meters (customizable)
Equipment Type Lifting Sling
Max. Lifting Load Up to 12 tons
Max. Lifting Height As per belt length
Control System Manual
Lifting Capacity Up to 12 tons
Attributes Eye Type, Multiply Layers
Condition New
Lifting Speed Depends on operator
Handle Type Flat loop or reinforced eye
Power Source Manual
Rotation Type Fixed
Feature Lightweight, Flexible, Durable, Abrasion Resistant
Features Chemical resistant, Does not damage load surface
Belt Type Flat Webbing

Product Description

FEATURES

100% High Tenacity Polyester
Made of multi-layered Webbing
Flat & wide Load bearing surface
According to EN-1492-1:2000 or ASME B 30.9
Safety Factor 7:1 and 5:1
Low Stretch Factor: Elongation 3-7%
High strength to weight ratio
Available up to 300 mm width & 110 Ton Capacity
Colour coded for easy identification
Maximum working temperature 90°C

			FLAT MULTY PLY WEBBING SLINGS CAPACITY IN KGS
			WLL in kg with one webbing sling					WLL in kg with two webbing slings
			Straight lift	Choke Hitch	Basket Hitch up to 7° 7° - 45° 45° -60° 60° Up to 7°			Straight Inclination 7°-45° 45°- 60°		Choke Inclination 7°-45° 45°- 60°
ITEM CODE	WIDTH	COLOUR CODE
MODE FACTOR			M=1.0	M=0.8	M=2	M=1.4	M=1.0	M=1.4	M=1.0	M=1.12	M=0.8
LMP-36	300	ORANGE	36000	28800	72000	50400	36000	50400	36000	40320	28800
LMP-48	300	ORANGE	48000	38400	96000	67200	48000	67200	48000	53760	38400
LMP-50-10	250	ORANGE	50000	40000	100000	70000	50000	70000	50000	56000	40000
LMP-50	300	ORANGE	50000	40000	100000	70000	50000	70000	50000	56000	40000
LMP-60	300	ORANGE	60000	48000	120000	84000	60000	84000	60000	67200	48000
LMP-72	300	ORANGE	72000	57600	144000	100800	72000	100800	72000	80640	57600
LMP-84	300	ORANGE	84000	67200	168000	117600	84000	117600	84000	94080	67200
LMP-100	300	ORANGE	100000	80000	200000	140000	100000	140000	100000	112000	80000
LMP-110	300	ORANGE	110000	88000	220000	154000	110000	154000	110000	123200	88000

Tailored Strength for Every Lift

Manufactured with high tenacity polyester and multiply layers, the sling delivers superior strength and security. Its customizable length and capacity make it ideal for tailored lifting solutions in various industries. Adhering to strict European standards, this webbing sling guarantees safety and reliability for even the most demanding applications.

Gentle Yet Tough Material Handling

The sling's soft, abrasion-resistant surface is designed not to scratch or damage loads, making it suitable for delicate materials. Chemical resistance and superior flexibility ensure extended usability, even in harsh environments. The flat or reinforced eye ends enhance versatility and compatibility with a range of lifting equipment.

FAQ's of Eye Types Multiply Polyester Flat Webbing Sling:

Q: How should the Eye Types Multiply Polyester Flat Webbing Sling be used for lifting operations?

A: To use the sling safely, select the proper capacity and length as per your application, attach the double eye ends to compatible lifting hooks, and ensure the load is evenly distributed. Always follow EN1492-1 guidelines and never exceed the rated working load.

Q: What benefits does a multiply polyester webbing sling offer compared to traditional chain or wire slings?

A: Multiply polyester webbing slings are lightweight, flexible, and easier to handle, reducing worker fatigue. They are also less likely to damage the load's surface, provide excellent chemical and abrasion resistance, and can be color-coded for easy identification of lifting capacity.

Q: When is it recommended to choose a flat webbing sling over other types of lifting slings?

A: Flat webbing slings are recommended when you need to lift heavy or delicate loads that require a soft and broad lifting surface to prevent scratching or crushing. Their versatility makes them suitable for construction, logistics, and material handling tasks.

Q: Where can Eye Types Multiply Polyester Flat Webbing Slings be used most effectively?

A: These slings are suitable for a range of industries including construction, logistics, warehousing, and manufacturing. They perform well in environments with temperature extremes (-40C to +100C) and where the load surface needs protection.

Q: What is the process for inspecting the sling before use?

A: Inspect the sling before each use for signs of wear, cuts, fraying, chemical damage, or stretching. Check the stitching on the eye areas and ensure the color coding is visible. Replace any sling that shows signs of compromise to maintain safety.

Q: How does the sling's color coding system assist in safe operation?

A: Color coding, compliant with EN1492-1, allows quick visual identification of the sling's lifting capacity, helping operators select the correct sling for their load, thereby reducing the risk of overloading and accidents.

Q: What are the advantages of the soft surface and flexibility in material handling applications?

A: The soft, flexible surface prevents scratches and damage to load surfaces, which is essential when handling finished goods or sensitive materials. Flexibility also allows easier maneuvering around irregularly shaped loads.
